Our engineers have taken
acknowledged leading atomization
technology and enhanced the market
leading AGMD Automatic gun to
produce the “AGMD PRO”.
Now incorporating LVMP Compliant
SPRAY performance with results to
match and exceed that of the traditional
air caps used today. This new platform
of Automatic gun technology has the
ability to improve Transfer Efficiency
while also providing reduced air
consumption.
Improved maintenance and
serviceability comes as standard from
the AGMD PRO which is vital for the
high demand finishing industries.
A choice of three new high performance
air caps are available ensuring the
AGMD PRO gun is the ultimate choice
for industrial finish quality.

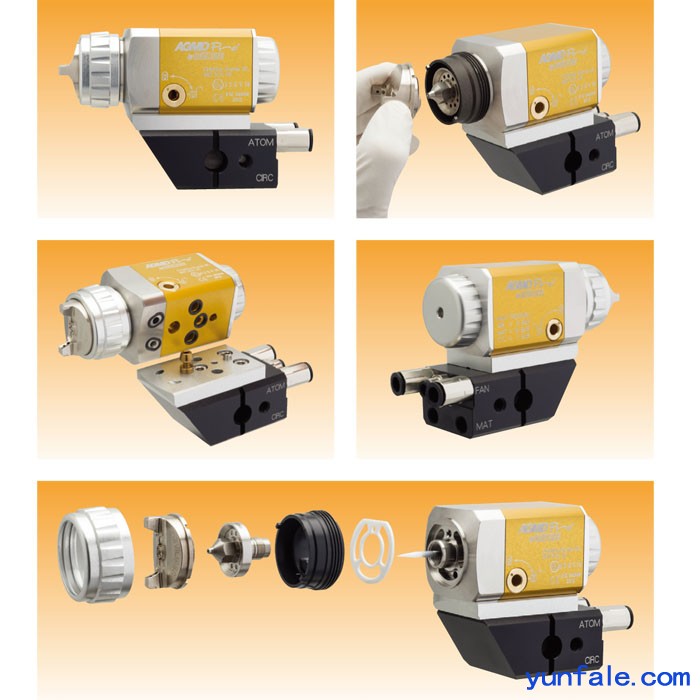

The new design AGMD PRO features
a simple quick detach gun head which
provides reduced production downtime
allowing servicing exchange for
maintenance in seconds. The improved
internal fluid passages facilitate
efficient color change and flushing
cycles required by Class A finishes.
The AGMD PRO gun can be configured
for standard machine mount
applications or upon adapters and hose
bundles suitable for most common
painting robots.
DeVilbiss LVMP Compliant Atomization Technology
“Pro” high performance front end technology with removable/replaceable baffle
and air cap retaining threads
New radial clamping device with quick release cam operation from either side of
gun – compact and convenient
Fast cylinder cycle at lower air pressures
Same “Tool Center Point” as original AGMD model
Certified air caps with indexing facility
Plastic tip needle on St/St seat for increased life
Suitable for waterborn and solvent base coatings

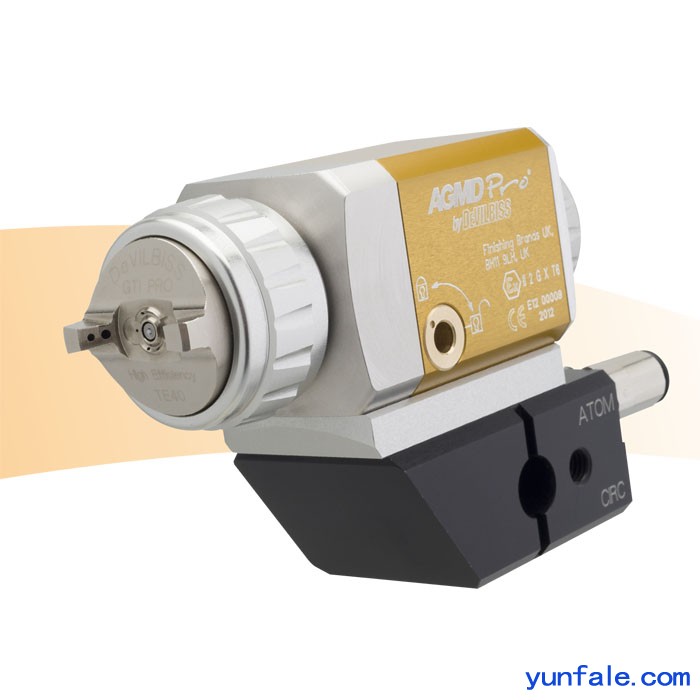

DEVILBISS AGMD PRO
Automatic spray gun
The DeVilbiss AGMD Pro Automatic spray gun delivers optimal atomization
quality and the best performance in its class.
finishingbrands.comPart Number example:
AGMDPRO-0000-YYP
Gun Tip and Needle
www.finishingbrands.com
email: marketing@finishingbrands.com
A54-125 10-13
DEVILBISS AGMD PRO Automatic spray gun
§ Fluid path with low pressure drop and smooth passageways.
§ More efficient color change.
§ Radial clamping device for positive sealing and reduced risk
of O-ring damage.
§ No exposed clamping mechanism.
§ Air cap indexing without fluid nozzle removal.
§ Air cap retaining ring with integral seals as standard.
§ Large piston with fast trigger cycles.
§ Full trigger stroke at reduced air pressure.
§ Easy maintenance with fewer critical gun body components.
§ Fluid needle removable from rear of gun without complete
disassembly.
Air cap type and air consumption
TE30 High Efficiency Air Cap: 12.9 cfm (365 l/min) @ 30 psi (2.0 bar)
TE40 High Efficiency Air Cap: 12.4 cfm (350 l/min) @ 30 psi (2.0 bar)
TE50 High Efficiency Air Cap: 15.0 cfm (425 l/min) @ 30 psi (2.0 bar)
Specification
